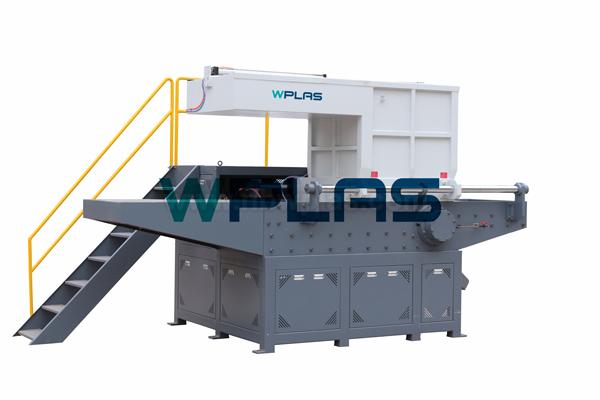

Single Shaft Shredder YSSJ Series
Single Shaft Shredder Details
Features:
Whole chamber cycle movement, highshredding efficiency, no stuck
Main shaft processed as integrated part by CNC, no broken
Drive parts connected by couplings, reducingvibration, protecting main axial and gear box, no strength loss
Controlled by PLC, equipped with start, shut down button, and overloading protection, reversible function, highly automatic, safe and stable
Suitable for large diameter PE/PVC pipes, board and PE lumps etc…
Main parameter:
|
Model
|
YSSJ-2455
|
YSSJ-3063
|
YSSJ-3980
|
YSSJ-48100
|
YSSJ-57120
|
YSSJ-75160
|
|
Shaft diameter
(mm)
|
275
|
275
|
275
|
315
|
315
|
350
|
|
Moving knife
(Pcs)
|
24
|
30
|
39
|
48
|
57
|
75
|
|
Fixed knife
(Pcs)
|
1
|
1
|
1
|
1
|
2
|
2
|
|
Max. capacity
(Kg/h)
|
400
|
500
|
700
|
900
|
1200
|
1300
|
|
Motor power
(kW)
|
22
|
30
|
37
|
45
|
55
|
75
|
|
ChamberSize
(LxW) (mm)
|
780x550
|
780x670
|
1000x870
|
1200x1060
|
1400x1260
|
1800x1650
|
|
Host weight
(Kg)
|
3600
|
4000
|
6000
|
8000
|
9500
|
12000
|
|
Dimensions
(LxWxH) (m)
|
3.25x1.5x2.35
|
3.25x1.75x2.35
|
4.15x1.9x2.45
|
4.7x2.55x2.65
|
5.35x2.85x2.76
|
5.9x3.05x2.96
|
