Angle Fusion Machine SHG Series

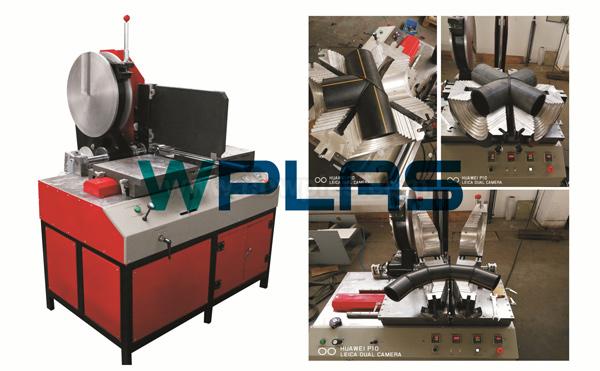

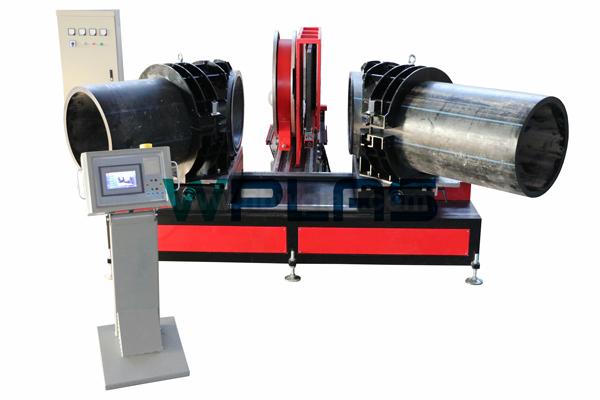

Angle Fusion Machine Details
Features:
Suitable for fabricating elbow, tee, cross and Y shape (45° and 60°) fittings of PE, PP in workshop, also used to lengthen the injection moulded fitting and make an integrated fitting, integrate structure
Nothing remains but to choose the different special clamps while fabricating different fittings
Removable PTFE coated heating plate
Electric planning tool with safety limit switch
Separate two-channel timer records times in soaking and cooling phases
High-accurate and shockproof pressure meter indicates clearer readings, digital pressure meter is installed on machine
Pivoting planning tool and heating plate bring convenience to placing and removing
Products comply with 98/37/EC and 73/23/EEC standards.
Main parameter:
|
Model
|
SHG315
|
SHG450
|
SHG630
|
|
|
Pipe size(mm)
|
90、110、125、140、160、180、200、225、250、280、315
|
200、225、250、280、315、355、400、450
|
315、355、400、450、500、560、630
|
|
|
Application
|
0-90°Elbow, tee, cross, 45°and60°wyes(optional parts should be used)
|
0-90°Elbow, tee,cross, 45°and60°wyes(optional parts should be used)
|
0-90°Elbow, tee,cross, 45°and60°wyes(optional parts should be used)
|
|
|
Heating plate Max. temp
|
270℃
|
270℃
|
270℃
|
|
|
Temp. deviationin surface(170-250℃)
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
|
|
Pressure adjustable ranges
|
0-6 Mpa
|
0-16 Mpa
|
0-16 Mpa
|
|
|
Working voltage
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
|
Heating plate power
|
5KW
|
12.2 KW
|
22 KW
|
|
|
Planning tool power
|
1.5 KW
|
2.2 KW
|
3 KW
|
|
|
Hydraulic unit power
|
0.75 KW
|
3 KW
|
4 KW
|
|
|
Total power
|
7.25 KW
|
17.4 KW
|
29 KW
|
|
|
Weight
|
760kg(Do not include optional parts)
|
2850 kg(Do not include optional parts)
|
3510 kg(Do not include optional parts)
|
|
|
Packing
|
Cases
|
4plywood
|
4 plywood
|
9 plywood
|
|
Volume
|
3.1CBM
|
14.66CBM
|
22.7CBM
|
|
|
Model
|
SHG800
|
SHG1000
|
SHG1200
|
|
|
Pipe size(mm)
|
450、500、560、630、710、800
|
630、710、800、900、1000
|
630、710、800、900、1000、1200
|
|
|
Application
|
0-90°Elbow, tee, cross, 45°and60°wyes(optional parts should be used)
|
0-90°Elbow, tee, cross, 45°and60°wyes(optional parts should be used)
|
0-90°Elbow, tee, cross, 45°and60°wyes(optional parts should be used)
|
|
|
Heating plate Max. temp
|
270℃
|
270℃
|
270℃
|
|
|
Temp. deviationin surface(170-250℃)
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
|
|
Pressure adjustable ranges
|
0-16 Mpa
|
0-16 Mpa
|
0-16 Mpa
|
|
|
Working voltage
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
|
Heating plate power
|
39.28 KW
|
60 KW
|
61.4 KW
|
|
|
Planning tool power
|
4 KW
|
4 KW
|
7.5 KW
|
|
|
Hydraulic unit power
|
4 KW
|
7.5 KW
|
7.5 KW
|
|
|
Total power
|
47.28 KW
|
71.5 KW
|
76.4 KW
|
|
|
Weight
|
4900 kg(Do not include optional parts)
|
16000kg(Do not include optional parts)
|
18000kg(Do not include optional parts)
|
|
|
Packing
|
Cases
|
11 plywood
|
11 plywood
|
11 plywood
|
|
Volume
|
23.3CBM
|
41.93CBM
|
45.93CBM
|
|
