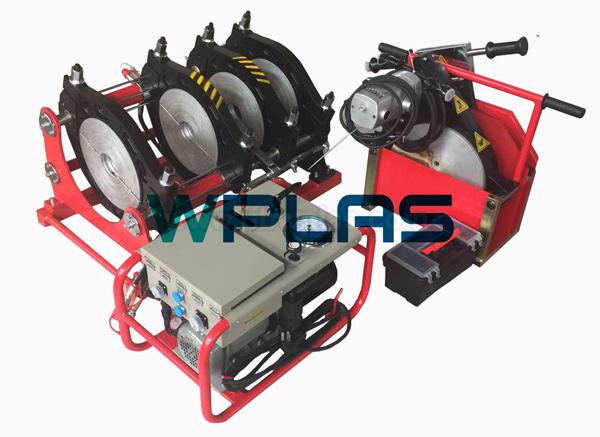

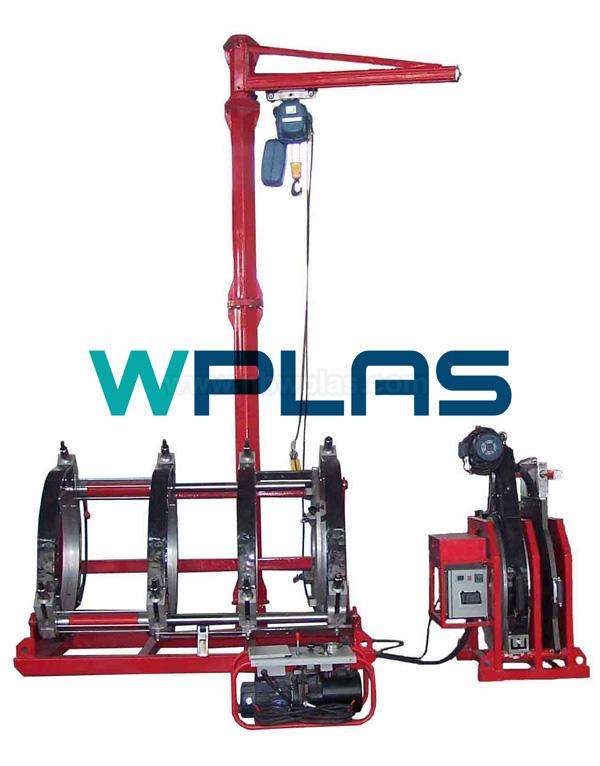

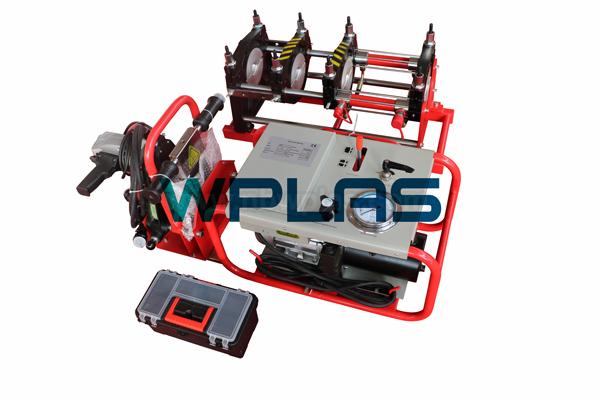

Butt Fusion Machine SHD Series
Butt Fusion Machine Details
Features:
Suitable for butt welding of plastic pipes and fittings made of PE, PP in a ditch in worksite or workshop
Consists of basic frame, hydraulic unit, planning tool, heating plate,support for planning tool & heating plate, and optional parts
Removable PTFE coated heating plate with separate temperature control system
Electric planning tool
Low starting pressure ensures reliable welding quality of small pipes
Separate two-channel timer records time in soaking and cooling phases
High accurate and shockproof pressure meter indicates clearer readings
Main parameter:
|
Model
|
SHD160
|
SHD250
|
SHD315
|
SHD355
|
SHD450
|
|
|
Pipe size(mm)
|
63、75、90、110、125、140、160
|
90、110、125、140、160、180、200、225、250
|
90、110、125、140、160、180、200、225、250、280、315
|
90、110、125、140、160、180、200、225、250、280、315、355
|
200、225、250、280、315、355、400、450
|
|
|
Heating plate
max. temp
|
270℃
|
270℃
|
270℃
|
270℃
|
270℃
|
|
|
Temp. deviation
in surface(170-250℃)
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
|
|
Pressure adjustable ranges
|
0-6.3 Mpa
|
0-6.3 Mpa
|
0-6.3 Mpa
|
0-6.3 Mpa
|
0-8 Mpa
|
|
|
Heating plate power
|
1KW
|
1 KW
|
3.5 KW
|
3.5 KW
|
5.38 KW
|
|
|
Planning tool power
|
1.1 KW
|
1.1 KW
|
1.1 KW
|
1.1 KW
|
1.5 KW
|
|
|
Hydraulic unit power
|
0.75 KW
|
0.75 KW
|
0.75 KW
|
0.75 KW
|
1.5 KW
|
|
|
Total power
|
2.85 KW
|
3.85 KW
|
5.35 KW
|
5.35 KW
|
8.38 KW
|
|
|
Working voltage
|
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
220V/50HZ
|
380V/50HZ
|
|
|
Weight
|
106 kg
|
143 kg
|
216 kg
|
260 kg
|
560 kg
|
|
|
Packing
|
Cases
|
3plywood
|
3plywood
|
3plywood
|
3plywood
|
4plywood
|
|
Volume
|
0.58CBM
|
0.70CBM
|
1CBM
|
1CBM
|
3.16CBM
|
|
|
Model
|
SHD500
|
SHD630
|
SHD800
|
SHD1000
|
SHD1200
|
|
|
Pipe size(mm)
|
200、225、250、280、315、355、400、450、500
|
315、355、400、450、500、560、630
|
450、500、560、630、710、800
|
630、710、800、900、1000
|
630、710、800、900、1000、1100、1200
|
|
|
Heating plate
Max. temp
|
270℃
|
270℃
|
270℃
|
270℃
|
270℃
|
|
|
Temp. deviation
in surface(170-250℃)
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
≤±7℃
|
|
|
Pressure adjustable ranges
|
0-8 Mpa
|
0-8 Mpa
|
0-16 Mpa
|
0-16 Mpa
|
0-16 Mpa
|
|
|
Heating plate power
|
9.35 KW
|
9.35 KW
|
12.5 KW
|
17.5 KW
|
21.5 KW
|
|
|
Planning tool power
|
1.5 KW
|
1.5 KW
|
2.2 KW
|
3 KW
|
4 KW
|
|
|
Hydraulic unit power
|
1.5 KW
|
1.5 KW
|
3 KW
|
3 KW
|
3 KW
|
|
|
Crane power
|
-
|
-
|
0.5 KW
|
0.5 KW
|
1 KW
|
|
|
Total power
|
12.35 KW
|
12.35 KW
|
18.2 KW
|
24 KW
|
29.5 KW
|
|
|
Working voltage
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
|
Weight
|
700 kg
|
780 kg
|
1360 kg
|
2600 kg
|
2740 kg
|
|
|
Packing
|
Cases
|
4 plywood
|
4 plywood
|
5 plywood
|
5 plywood
|
5 plywood
|
|
Volume
|
4.43CBM
|
4.43CBM
|
8.39CBM
|
---
|
---
|
|
