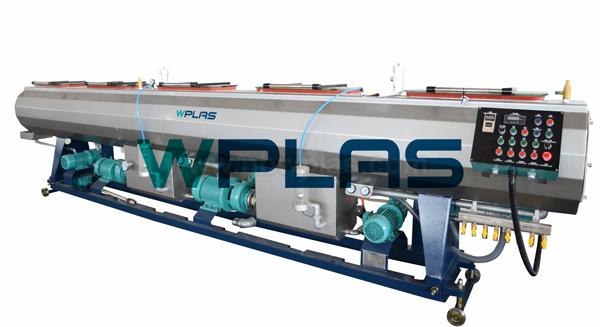

Pipe Vacuum Tank ZD Series
Pipe Vacuum Tank Details
Features:
304 stainless steel tank, tempered glass door
New optimized design of the stainless steel piping
Tractor remote control function
Application of European PE filters
Using China famous brand vacuum pump and water pump, ensure the pipe forming quality
Main parameter:
|
Model
|
Working range (mm)
|
Tank length (mm)
|
Tank thickness (mm)
|
Vacuum pump
(kW)
|
Water pump (kW)
|
Moving motor power (kW)
|
Central height (mm)
|
|
ZD-63
|
16-63
|
9000/5800
|
3
|
1.5+2.2
|
3+4
|
0.75
|
|
|
ZD-110
|
20-110
|
9000/5800
|
3
|
2.2+2.2
|
3+4
|
1.1
|
1000-1050
|
|
ZD-160
|
50-160
|
9000/5800
|
3
|
2.2+3
|
4+5.5
|
1.1
|
1000-1050
|
|
ZD-250
|
90-250
|
9000/5800
|
4
|
3+4
|
5.5+5.5
|
1.5
|
1000-1050
|
|
ZD-315
|
90-315
|
9000/5800
|
4
|
4+5.5
|
5.5+7.5
|
1.5
|
1000-1050
|
|
ZD-450
|
110-450
|
9000/5800
|
5
|
5.5+5.5
|
7.5+7.5
|
1.5
|
1100-1150
|
|
ZD-630
|
250-630
|
6
|
5.5+5.5*2
|
7.5+7.5*2
|
0.75+1.5
|
1100-1150
|
|
|
ZD-800
|
400-800
|
2400+9000
|
6
|
5.5+5.5*2
|
7.5+7.5*2
|
1.5
|
1200-1250
|
|
ZD-1000
|
500-1000
|
2400+10000
|
8
|
7.5+5.5*3
|
7.5+7.5*3
|
1.5
|
1400-1450
|
